I want to save the displayed screen.

This section explains how to save to a memory card a screen capture of the screen displayed on the VT5.

1. To save a screen capture to a memory card as image data, set the output destination of the printer to the memory card.

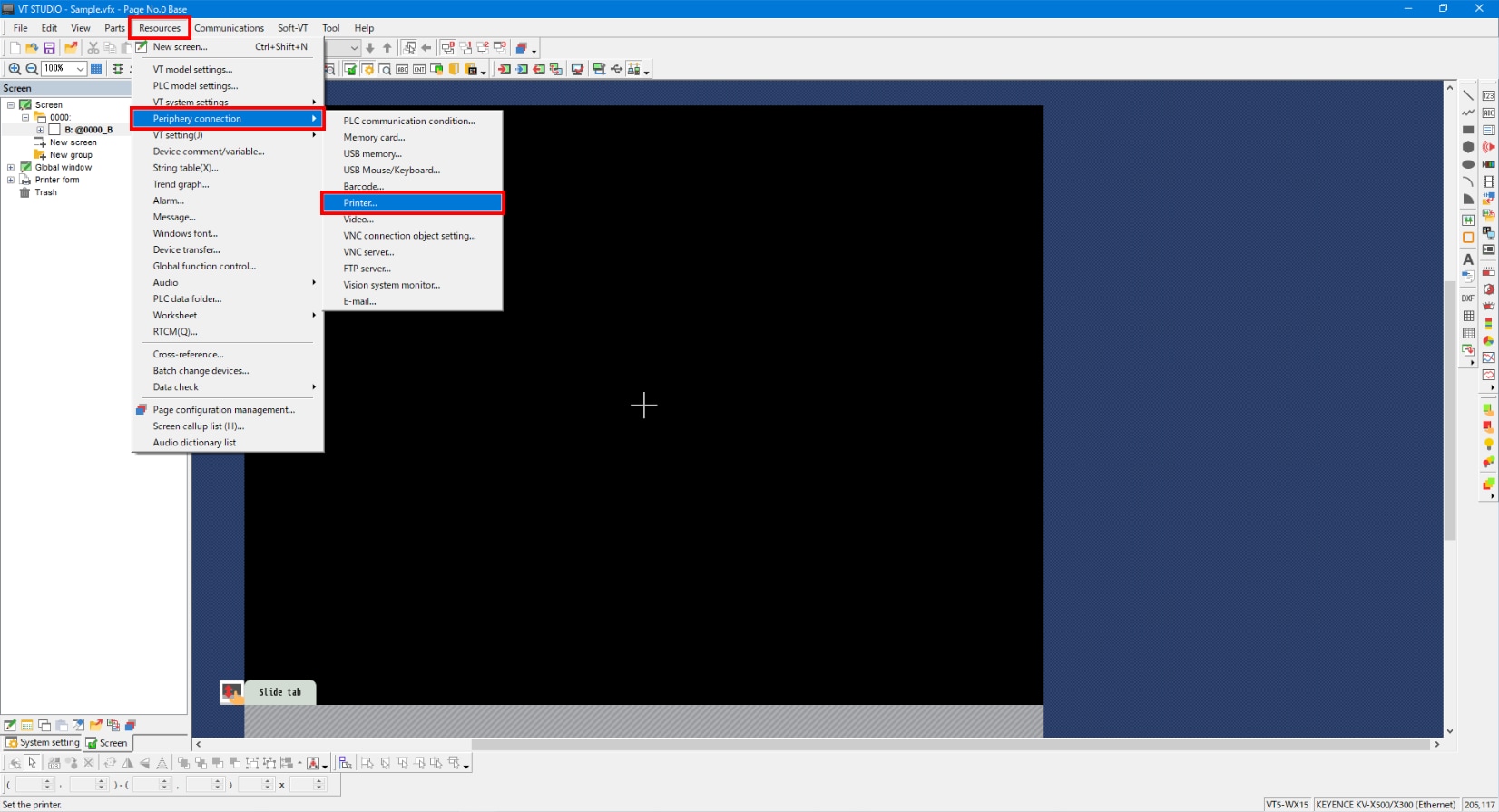

From the menu, select [Resources] -> [Periphery connection] -> [Printer].

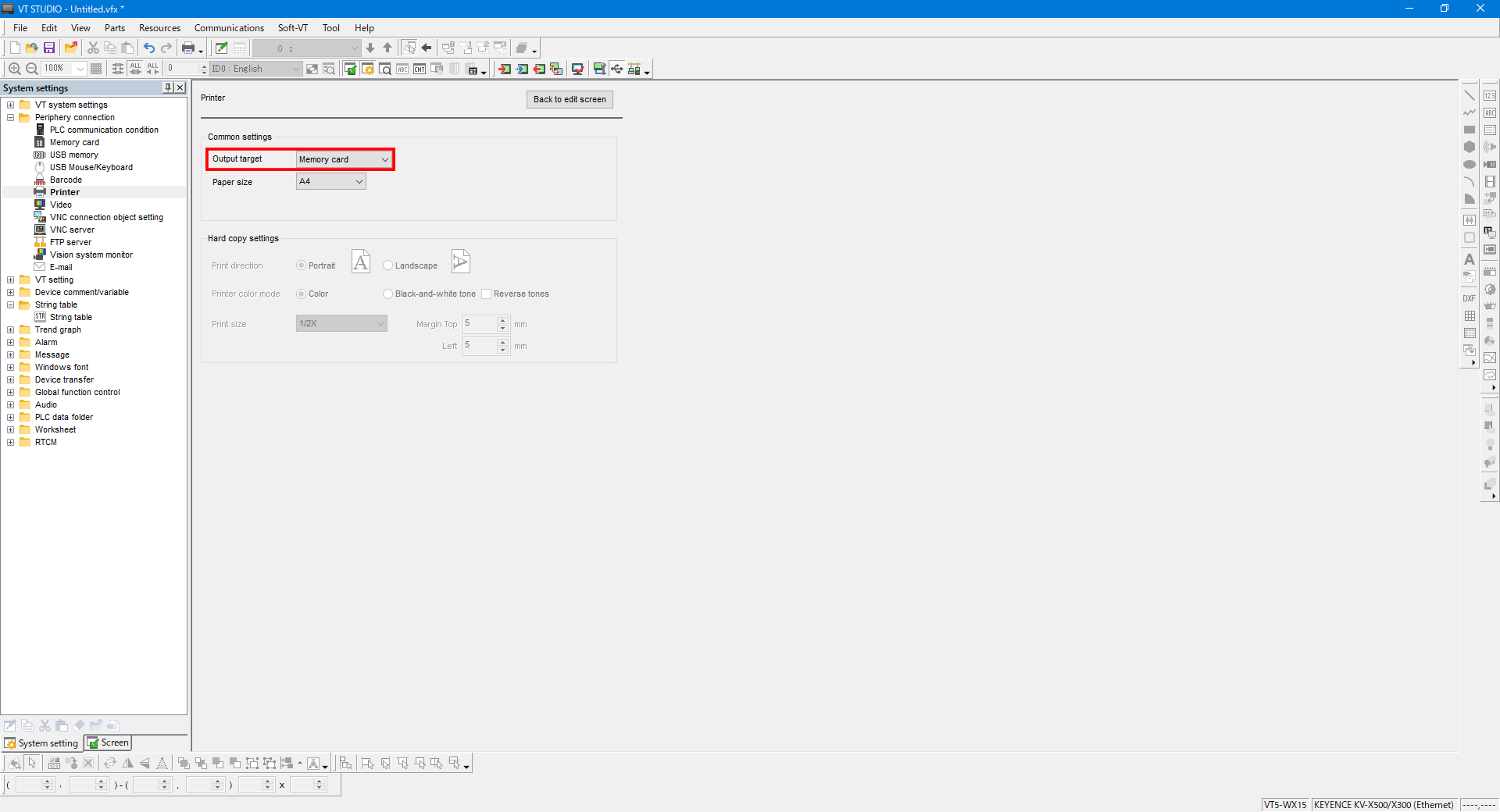

2. Set “Output target” to “Memory card.”

• *
  Some of the setting screen details vary depending on the VT5 type.

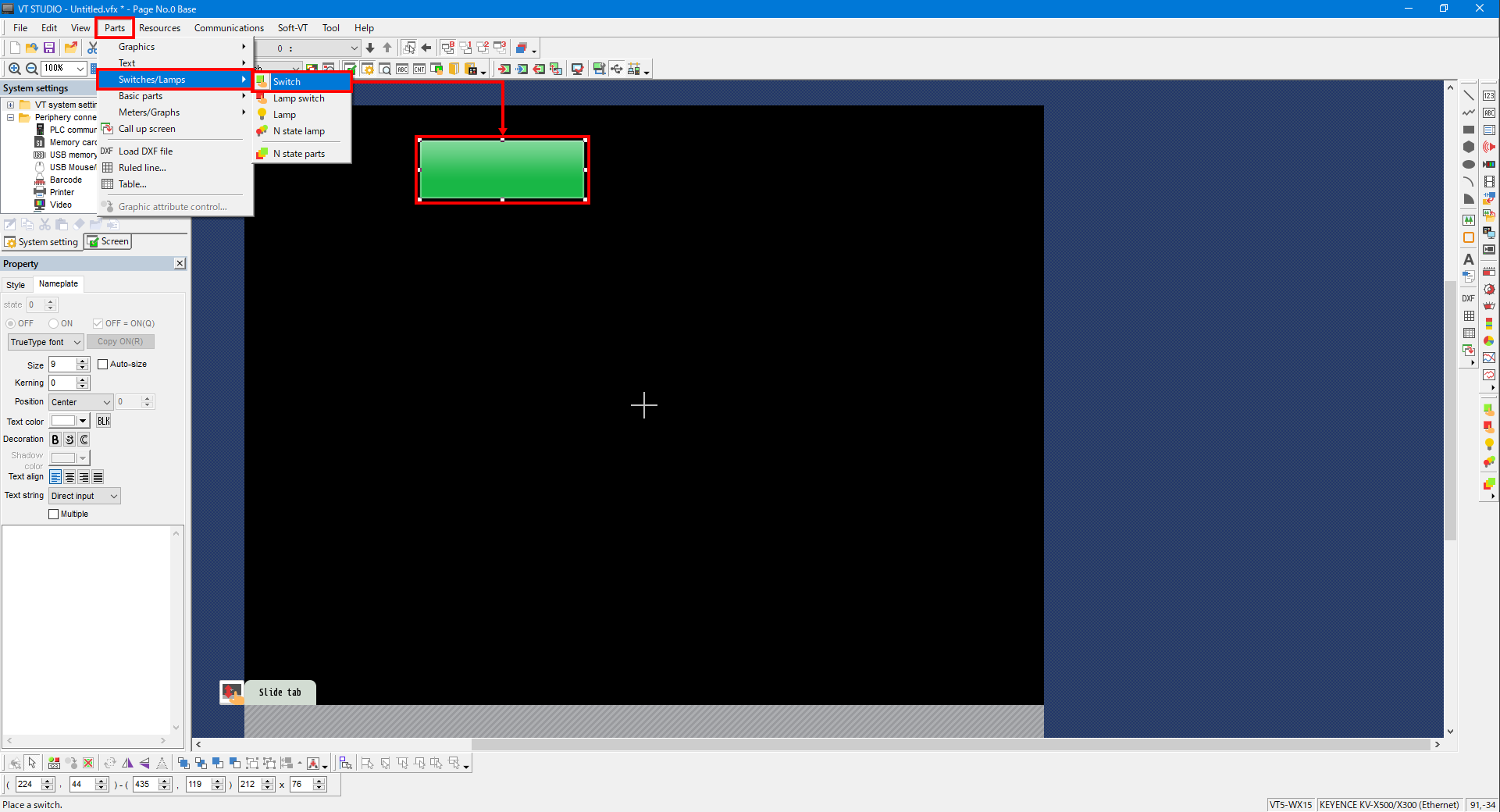

3. From the menu, select [Parts] -> [Switches/Lamps] -> [Switch], and then place the switch to use in saving the screen capture.

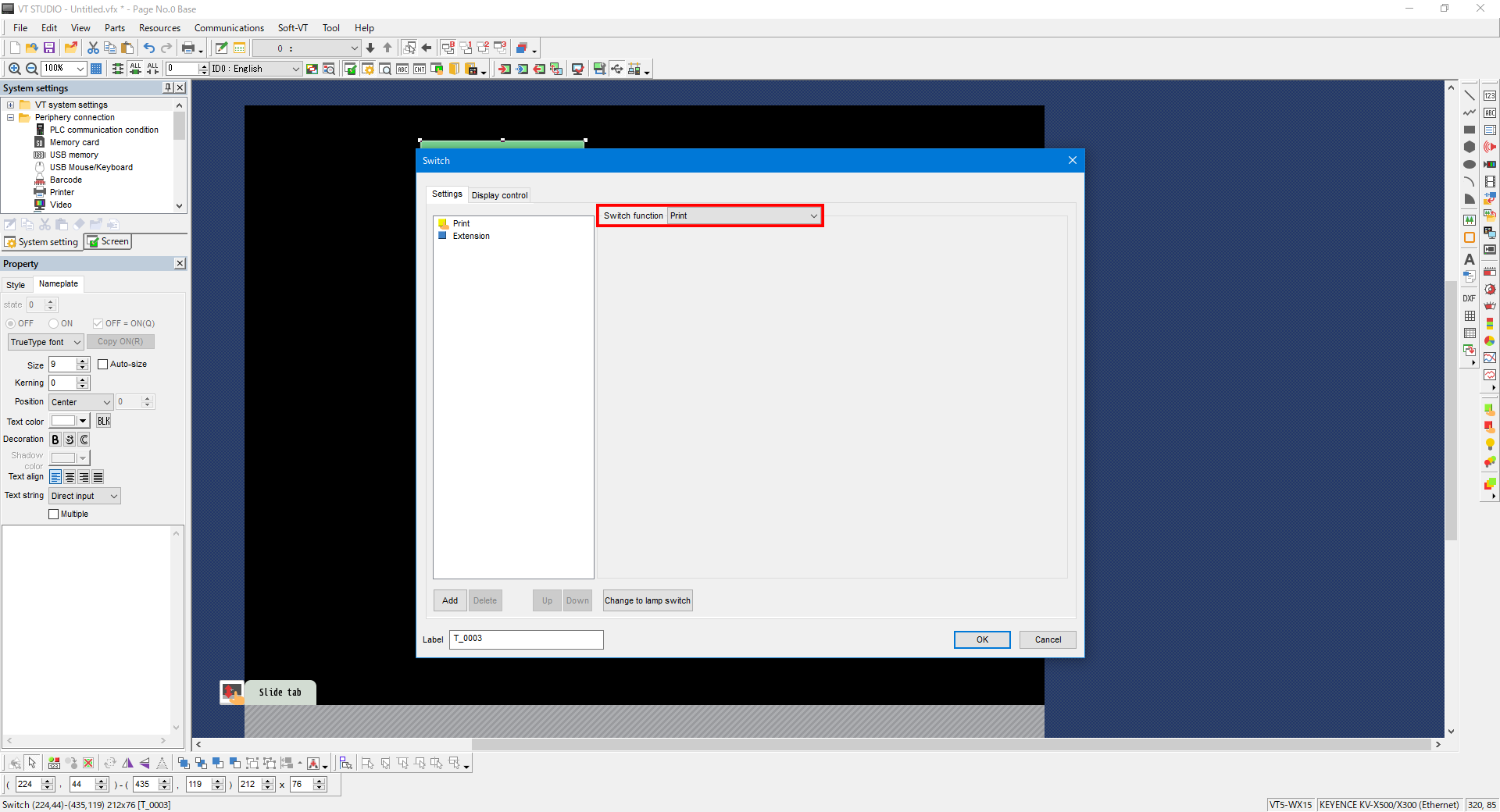

4. Open the switch settings screen, and then configure the settings as shown below.
