[Manufacturing Industry] Food/Medicine/Cosmetics

This section introduces actual application examples regarding food, medicine, and cosmetics in the manufacturing industry. Actual examples will be used to explain the problems in various food, medicine, and cosmetic processes and the advantages provided by installing handheld mobile computers.

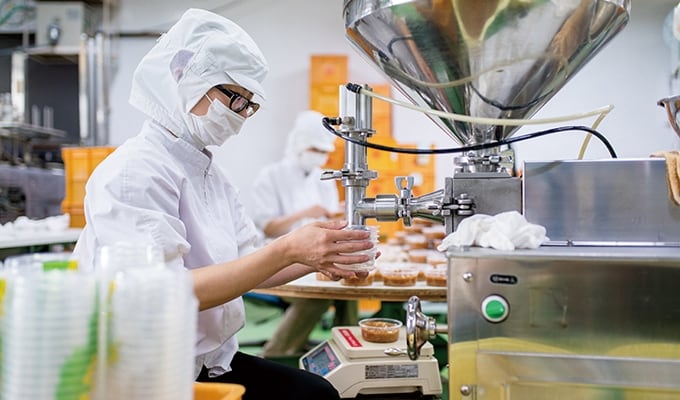

Manufacturing of Food/Medicine/Cosmetics

Manufacturing of Food/Medicine/Cosmetics

Food, medicine, and cosmetics must be very safe because they are products that are taken into the body or come into contact with the skin. Food products being past their expiration dates, containing foreign particles, and having packaging defects are all problems that negatively affect the safety of food and must therefore not occur. If these problems occur, the affected products must be recalled immediately. Also, in addition to the strengthening of inspections and management systems, the importance of traceability has increased in recent years. The trend in the food and medicine industries shows that the display standards are getting stronger every year. Examples include the change to a higher degree of strictness for the indication of information such as best before dates, production sites, and ingredients and the unification of distribution codes. This has led to an increased load on manufacturing processes, with the installations of handheld mobile computer systems and the use of barcodes and 2D codes spreading to bring customers safer food, medicine, and cosmetics.

Problems in Manufacturing of Food/Medicine/Cosmetics

At manufacturing worksites for items such as food, medicine, and cosmetics, it is easy for mistakes to occur in receiving order and shipping due to the large number of items that are handled and the large number of similar products. There are also concerns regarding problems such as the wrong raw materials being taken during inventory management, picking, and blending. Furthermore, because not only finished products but raw materials also have best-before dates and expiration dates, thorough management of these dates is absolutely necessary in the manufacturing of food, medicine, and cosmetics. A single mistake can lead to a product recall, which not only generates major losses but can also greatly damage the brand image.

Solving Problems by Installing Handheld Mobile Computers

Installing handheld mobile computers is an effective solution for eliminating problems such as mistakes in order reception and placement and taking the wrong items. Handheld mobile computers can be used in manufacturing processes to accurately search for products, which can prevent mistakes in the preparation of raw materials in various processes. Also, thoroughly managing raw materials leads to reduced disposal loss. Regarding product delivery, using handheld mobile computers not only allows for product management but also leads to traceability, which makes it possible to prevent the placement of orders for products such as those with expired best-before dates. Even if defective products are released, the target lot can be identified and recalled.

Typical Processes and Manufacturing Flow

This section explains detailed handheld mobile computer installation examples grouped by process during the manufacturing of food/medicine/cosmetics. The typical processes and manufacturing flow for food/medicine/cosmetics are shown below.

Supplier

Receiving
Typical Processes and Manufacturing Flow
Delivered product
Finished product warehouse
  • Shipping inspection
  • Inventory management
  • Inventory
  • Date management

Advantages Provided by Installing Handheld Mobile Computers in Various Processes

This section explains the advantages of installing handheld mobile computers and actual application examples for the typical processes listed above.

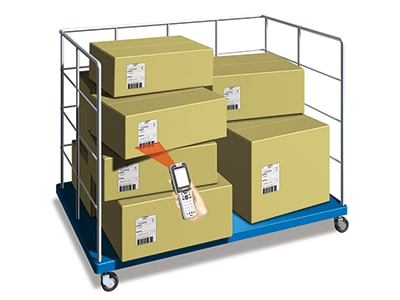

Receiving

Receiving

Normally, slips are checked visually for the inspections of raw materials, but similar product numbers, product names, and other such information can lead to mistakes. Handheld mobile computers enable mistake-free receiving work by reading barcodes and similar information provided with the raw materials. This makes it possible to eliminate operator entry of data and to automatically convert receiving results to data, which is effective in preventing careless mistakes. Also, when handheld mobile computers are used on a manufacturing line, inventory is moved automatically, which enables appropriate inventory management.

Raw material warehousing

Raw material warehousing

If mistakes occur in inspections performed visually or otherwise during warehousing or if products are placed on the wrong shelves, confusion will arise when an operator attempts to pick the raw materials required for the manufacturing line, and the subsequent processes will be greatly delayed. By using handheld mobile computers and barcodes to associate product information with shelf information, this work can be made faster and more accurate. Also, handheld mobile computers generate warnings when raw materials have exceeded their best-before dates, which prevents these materials from being supplied to the worksite by mistake.

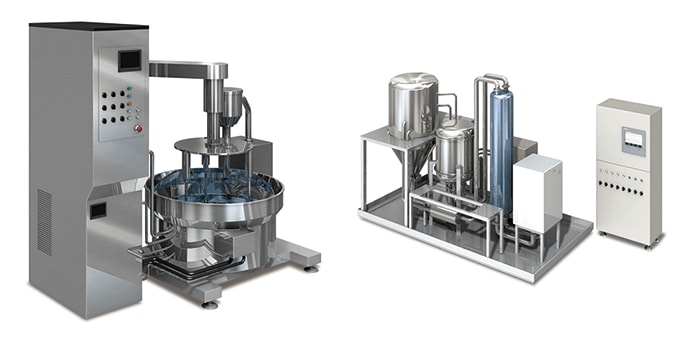

Blending

Blending

For food/medicine/cosmetics, blending mistakes can occur due to the wrong raw materials being taken. Handheld mobile computers can be used to read barcodes and check the raw materials and recipe before blending. Also, overall operation management, recipe checks, and insertion checks can be performed in real time, which makes it possible to handle problems as soon as they occur, thereby preventing delays in postprocessing. In addition, it is possible to check best-before dates during blending, manage the status of consumables and equipment, and associate and manage a large number of items related to manufacturing.

Filling

Filling

Handheld mobile computers can be used to greatly improve the efficiency of lot number management, process management, and traceability in the filling process. Also, if an error occurs during the marking of labels, handheld mobile computers will generate a warning when scanning said labels.

Inspection/packing

Inspection/packing

The shipping lot reversal phenomenon is likely to occur due to issues such as inventory management not being carried out thoroughly in the manufacturing of food/medicine/cosmetics. However, if handheld mobile computers are installed, the shipping lot history of each customer can be managed in an appropriate manner, which makes it possible to avoid the above situation before it happens. Conversely, customer requests for the delivery of products with a later best-before date can be handled quickly, which leads to improved customer satisfaction.

Finished product warehouse

Finished product warehouse

Installing handheld mobile computers in a finished product warehouse can prevent shipping mistakes because barcodes and 2D codes can be affixed to packaging for verification against the shelf numbers where products are stored in the warehouse. Handheld mobile computers also greatly improve the efficiency of inventory management. Reading the best-before date data within the warehouse enables straightforward first in, first out operation, which reduces wasted costs, time, and effort.

Improving Operation With Character Recognition Handheld Mobile Computers

For items such as food, medicine, and cosmetics, it is required to display not only serial numbers and lot numbers but best-before dates and expiration dates as well. Because this information could not be converted to barcodes, it was necessary to perform visual inspections. However, characters may be read incorrectly during visual inspections, which may lead to wrong shipments. Using handheld mobile computers that support optical character recognition (OCR) makes it possible to switch from visual inspections to inspections with handheld mobile computers. This enables accurate and fast date verification. This also eliminates the hassle of writing best-before date data on paper and entering this data into a PC, which improves the efficiency of product management. KEYENCE's BT Series of handheld mobile computers supports optical character recognition (OCR), so these devices are very effective in situations such as that shown below.

Best-before date management

Verifying product slips and products

Mistakes such as missed checks and incorrect identification that occurred with visual inspections can be eliminated by using handheld mobile computers to read best-before dates when shipping products. If dates that are not valid for shipment are set in advance for products and customers, dates read by handheld mobile computers can be compared against this information instantaneously, therefore greatly reducing shipping mistakes. With visual checks, double- and triple-checks are required to improve the inspection accuracy, but multiple checks are not necessary with handheld mobile computers.

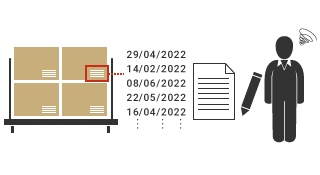

Conventional

Visual check
Conventional: Visual check, handwritten record, and manual entry into a PC

Improvement

Just scan the date to easily enter it into the system and verify it.
Improvement: Just scan the serial number to easily enter it into the system.

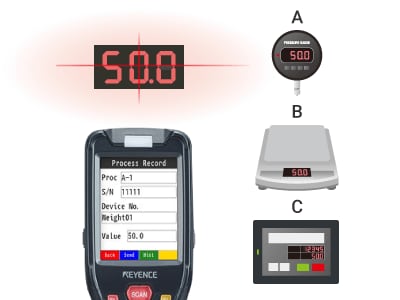

Checking the measuring weight of a measuring instrument

Checking the measuring weight of a measuring instrument
  1. A: Pressure gauge
  2. B: Weighing scale
  3. C: Touch panel

When inserting raw materials, reading the numeric data of the weighing instrument eliminates mistakes in visual checks of the weight during its measurement.

Checking the weight at the same time that the recipe and the raw materials to blend are checked eliminates the need to perform on-site management on paper.

Conventional

Visual check, handwritten record, and manual entry into a PC
Conventional: Visual check, handwritten record, and manual entry into a PC

Improvement

Just scan the data of the measuring instrument to easily enter it into the system.
Improvement: Just scan the serial number to easily enter it into the system.
