Measurement 3Thrubeam 2D Optical Micrometer

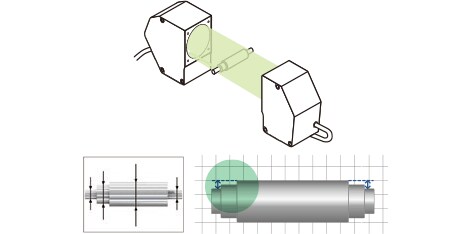

The silhouette of the target is projected, and the step height between two specified features is calculated.

KEY POINTS

Even if the shaft is tilted, step can be measured accurately when the alignment adjustment feature is utilised. Measurements are not affected by the colour of the target surface.

TM Series
  • 2D Telecentric Optical Method.
  • World's first in-line profile projector.
  • Up to 16 simultaneous measurements.
DOWNLOAD CATALOGUE
TM Series

Click here for a printable PDF version Download these simple guide books and start learning the different measurement practices for different applications
