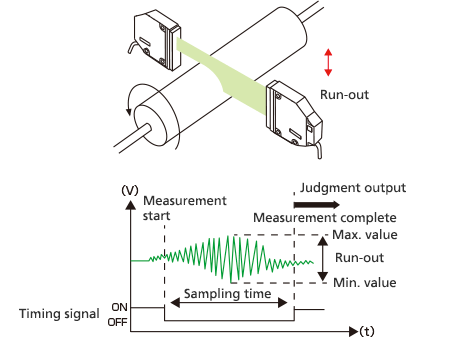

Measurement 2Thrubeam Optical Micrometer

Fluctuations in the edge positions of the roll are captured through high-speed sampling.

KEY POINTS

  • The peak-to-peak value of the run-out is found using peak-to-peak hold or a similar function.
  • Measurement must be performed at a sampling rate of at least ten times the rotation speed.
