Measurement 1Thrubeam Optical Micrometer

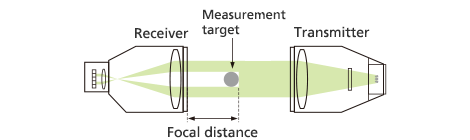

The target is passed through a beam of collimated light to measure the size of its shadow.

KEY POINTS

  • Outer diameter can be measured to high precision by selecting the measurement system best suited to the target diameter.
  • A faster sampling cycle ensures stable measurement even if there is target run-out.
